TECHWAY INDUSTRIAL CO., LTD

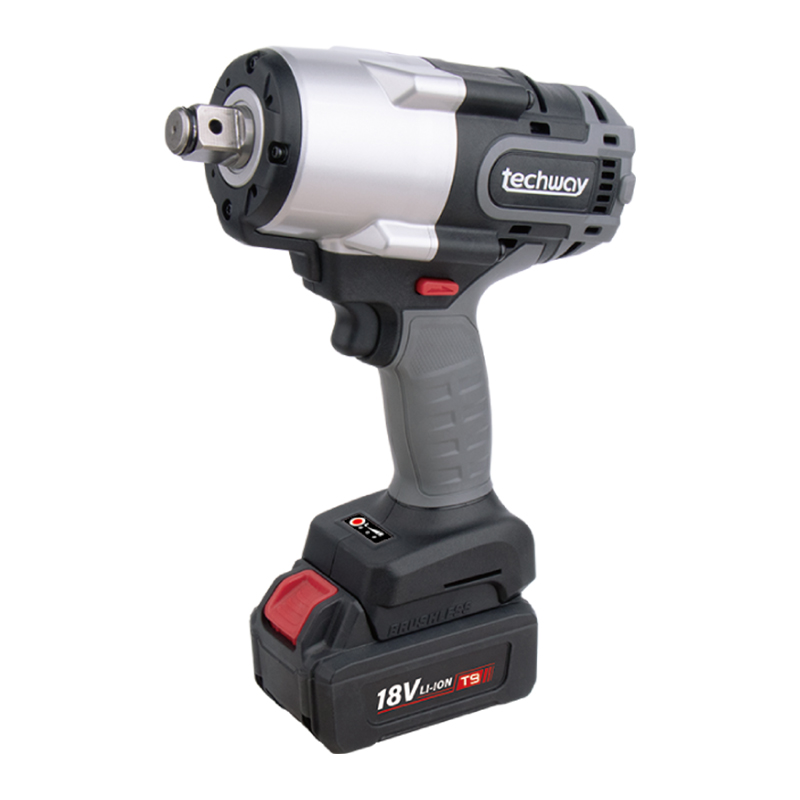

18.0 V Cordless impact wrench 1/2"

T96803758 / IWOK1804C

NUT-BUSTING TORQUE 24785 kgf-cm/2430 N-m/1800 ft-lb

Optional with battery capacity and charger and packaging

SHARE THIS PRODUCT：

Property sheet

MODEL NO.	T96803758 / IWOK1804C
VOLTAGE.	18.0 V
NOLOADSPEED.	0~2200 r.p.m.
TORQUE CONTROL.	3 TORQUE SECTIONS
TORQUE RANGE FORWARD 1st.	1020 kgf-cm/100 N-m/74 ft-lb
TORQUE RANGE FORWARD 2nd.	2240 kgf-cm/220 N-m/163 ft-lb
TORQUE RANGE FORWARD 3rd.	11220 kgf-cm/1100 N-m/815 ft-lb
CAPACITY.	1/2"
IMPACTS PER MINUTE.	0~2100
MOTOR.	Brushless Motor
SIZE.	L204 x W83.8 x H308.6 mm (Battery included)
WEIGHT.	3.91 kg (Battery included)
Applicable battery.	B0905F07A25 B0905F07A30 B0905F08A50 B0905F08A60

Battery and charger combination pairing table

18.0 V	C1037358	C1161358	C1171358 C1201358
B0905F07A25 2500mAh	80%:60min 100%:65min	80%:40min 100%:53min	80%:25min 100%:37min
B0905F07A30 3000mAh	80%:75min 100%:80min	80%:45min 100%:60min	80%:31min 100%:43min
B0905F08A50 5000mAh	80%:125min 100%:135min	80%:85min 100%:100min	80%:51min 100%:65min
B0905F08A60 6000mAh	80%:155min 100%:165min	80%:105min 100%:120min	80%:61min 100%:78min
B0805N02A25 2500mAh	80%:60min 100%:65min	80%:40min 100%:53min	80%:25min 100%:37min
B0805N02A30 3000mAh	80%:75min 100%:80min	80%:45min 100%:60min	80%:31min 100%:43min
B0805N02F30 3000mAh	80%:75min 100%:80min	80%:45min 100%:60min	80%:31min 100%:43min
B0805N02F40 4000mAh	80%:95min 100%:100min	80%:65min 100%:80min	80%:41min 100%:53min
B0805N03A50 5000mAh	80%:125min 100%:135min	80%:85min 100%:100min	80%:51min 100%:65min
B0805N03A60 6000mAh	80%:155min 100%:165min	80%:105min 100%:120min	80%:61min 100%:78min
