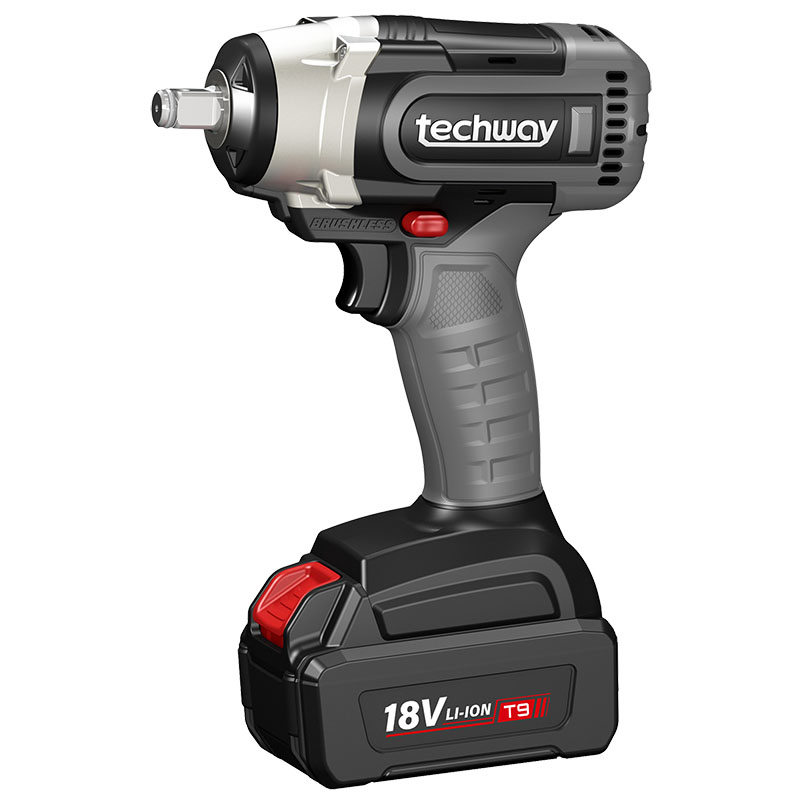

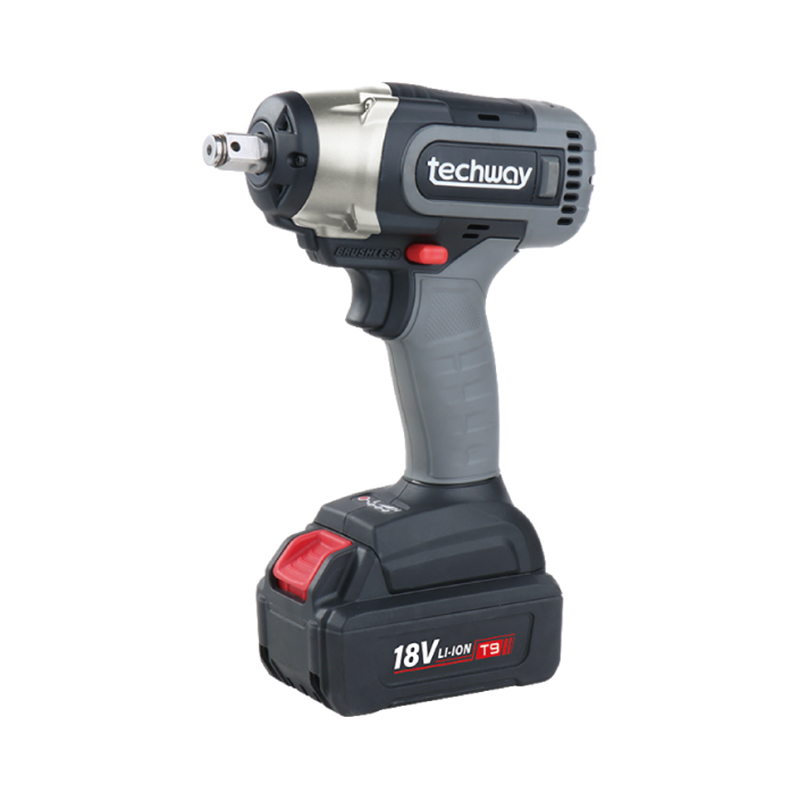

18.0 V Cordless impact wrench 1/2"
T96805258 / IWXI1804C
Optional with battery capacity and charger and packaging
SHARE THIS PRODUCT:

Property sheet
MODEL NO.T96805258 / IWXI1804C
VOLTAGE.18.0 V
NOLOADSPEED.0~2400 r.p.m
TORQUE CONTROL.4 TORQUE SECTIONS
TORQUE RANGE FORWARD 1st.357kg-cm/35 N-m/26 ft-lb
TORQUE RANGE FORWARD 2nd.1020kg-cm/100 N-m/74 ft-lb
TORQUE RANGE FORWARD 3rd.1550kg-cm/152 N-m/113 ft-lb
TORQUE RANGE FORWARD 4th.5500kg-cm/539 N-m/396 ft-lb
CAPACITY.1/2"
IMPACTS PER MINUTE.0~3200
MOTOR.Brushless Motor
SIZE.L170x W78 x H257 mm (Battery included)
WEIGHT.2.22 kgs (Battery included)
Applicable battery.B31615830
B31615840
B31615850
B31615860
B31715820
B31715825
B31715830
Battery and charger combination pairing table
18.0 VC1037358
C1191358
C1161358C1171358
C1201358
C1241058
B31715820
2000mAh
80%:45min
100%:50min
80%:35min
100%:40min
80%:19min
100%:27min
80%:min
100%:70min
B31715825
2500mAh
80%:60min
100%:65min
80%:40min
100%:53min
80%:25min
100%:37min
80%:min
100%:90min
B31715830
3000mAh
80%:75min
100%:80min
80%:45min
100%:60min
80%:31min
100%:43min
80%:min
100%:110min
B31615830
3000mAh
80%:75min
100%:80min
80%:45min
100%:60min
80%:31min
100%:43min
80%:min
100%:110min
B31615840
4000mAh
80%:95min
100%:100min
80%:65min
100%:80min
80%:41min
100%:53min
80%:min
100%:130min
B31615850
5000mAh
80%:125min
100%:135min
80%:85min
100%:100min
80%:51min
100%:65min
80%:min
100%:165min
B31615860
6000mAh
80%:155min
100%:165min
80%:105min
100%:120min
80%:61min
100%:78min
80%:min
100%:205min
