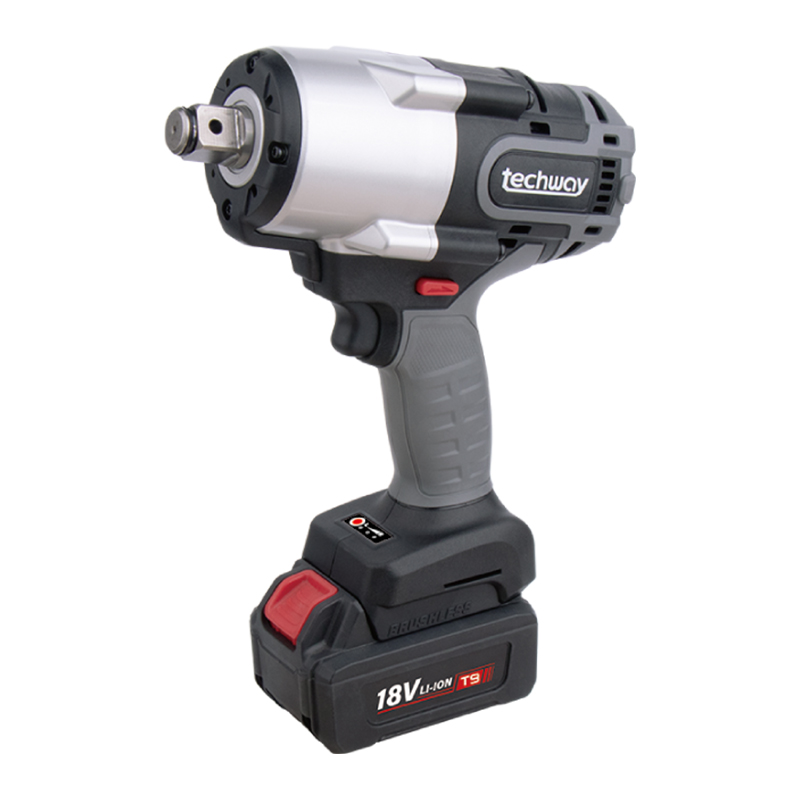

18.0 V Cordless impact wrench 3/4"
T96803858 / IWOK1806C
NUT-BUSTING TORQUE 24785 kgf-cm/2430 N-m/1800 ft-lb
Optional with battery capacity and charger and packaging
SHARE THIS PRODUCT：

Property sheet
MODEL NO.T96803858 / IWOK1806C
VOLTAGE.18.0 V
NOLOADSPEED.0~1650 r.p.m.
TORQUE CONTROL.3 TORQUE SECTIONS
TORQUE RANGE FORWARD 1st.1120 kgf-cm/100 N-m/81 ft-lb
TORQUE RANGE FORWARD 2nd.2750 kgf-cm/270 N-m/200 ft-lb
TORQUE RANGE FORWARD 3rd.16520 kgf-cm/1620 N-m/1200 ft-lb
CAPACITY.3/4"
IMPACTS PER MINUTE.0~2300
MOTOR.Brushless Motor
SIZE.L209 x W83.8 x H308.6 mm (Battery included)
WEIGHT.3.99 kg (Battery included)
Applicable battery.B0905F07A25
B0905F07A30
B0905F08A50
B0905F08A60
Battery and charger combination pairing table
18.0 VC1037358C1161358C1171358
C1201358
B0905F07A25
2500mAh		80%:60min
100%:65min 		80%:40min
100%:53min 		80%:25min
100%:37min
B0905F07A30
3000mAh		80%:75min
100%:80min 		80%:45min
100%:60min 		80%:31min
100%:43min
B0905F08A50
5000mAh		80%:125min
100%:135min 		80%:85min
100%:100min 		80%:51min
100%:65min
B0905F08A60
6000mAh		80%:155min
100%:165min 		80%:105min
100%:120min 		80%:61min
100%:78min
B0805N02A25
2500mAh		80%:60min
100%:65min 		80%:40min
100%:53min 		80%:25min
100%:37min
B0805N02A30
3000mAh		80%:75min
100%:80min 		80%:45min
100%:60min 		80%:31min
100%:43min
B0805N02F30
3000mAh		80%:75min
100%:80min 		80%:45min
100%:60min 		80%:31min
100%:43min
B0805N02F40
4000mAh		80%:95min
100%:100min 		80%:65min
100%:80min 		80%:41min
100%:53min
B0805N03A50
5000mAh		80%:125min
100%:135min 		80%:85min
100%:100min 		80%:51min
100%:65min
B0805N03A60
6000mAh		80%:155min
100%:165min 		80%:105min
100%:120min 		80%:61min
100%:78min
